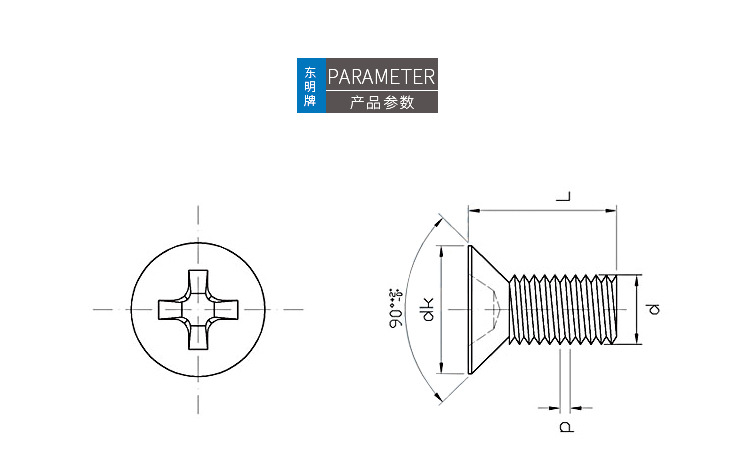

| P
|
螺距 |
| a
|
最大值 |
| dk
|
理论值 |
最大值 |
| dk
|
实际值 |
最大值 |
| 最小值 |
| k
|
最大值 |
| x
|
最大值 |
| 槽号
|
|
|
|
|
|
|
|
| r
|
最大值 |
| 深度
|
十字槽 H型 |
最小值 |
| 最大值 |
| 深度
|
十字槽 Z型 |
最小值 |
| 最大值 |
|
| 0.35 |
0.4 |
0.45 |
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
| 0.7 |
0.8 |
0.9 |
1 |
1.4 |
1.6 |
2 |
2.5 |
3 |
| 3.6 |
4.4 |
5.5 |
6.3 |
9.4 |
10.4 |
12.6 |
17.3 |
20 |
| 3 |
3.8 |
4.7 |
5.5 |
8.4 |
9.3 |
11.3 |
15.8 |
18.3 |
| 2.7 |
3.5 |
4.4 |
5.2 |
8 |
8.9 |
10.9 |
15.4 |
17.8 |
| 1 |
1.2 |
1.5 |
1.65 |
2.7 |
2.7 |
3.3 |
4.65 |
5 |
| 0.9 |
1 |
1.1 |
1.25 |
1.75 |
2 |
2.5 |
3.2 |
3.8 |
| 0 |
0 |
1 |
1 |
2 |
2 |
3 |
4 |
4 |
| 1.6 |
1.9 |
2.9 |
3.2 |
4.6 |
5.2 |
6.8 |
8.9 |
10 |
| 1.8 |
2 |
3 |
3.2 |
4.6 |
5.1 |
6.8 |
9 |
10 |
| 0.4 |
0.5 |
0.6 |
0.8 |
1 |
1.3 |
1.5 |
2 |
2.5 |
| 0.6 |
0.9 |
1.4 |
1.7 |
2.1 |
2.7 |
3 |
4 |
5.1 |
| 0.9 |
1.2 |
1.8 |
2.1 |
2.6 |
3.2 |
3.5 |
4.6 |
5.7 |
| 0.7 |
0.95 |
1.45 |
1.6 |
2.05 |
2.6 |
3 |
4.15 |
5.2 |
| 0.95 |
1.2 |
1.75 |
2 |
2.5 |
3.05 |
3.45 |
4.6 |
5.65 |
|
